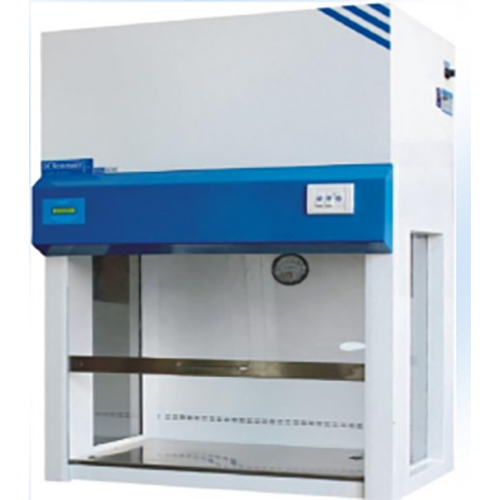

Cleanair Vertical Laminar Airflow Bench (CAV 600)

Get a Price/Quote

MOQ : 1 Unit

Cleanair Vertical Laminar Airflow Bench (CAV 600) Specification

Power Supply
Electric

Usage
Industrial

Size
Standard

Product Type
Cleanair Vertical Laminar Airflow Bench (CAV 600)

Color
White And Blue

Voltage
220 Volt (v)

Material
Mild Steel

Application
Industrial

Cleanair Vertical Laminar Airflow Bench (CAV 600) Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Day

Delivery Time
7 Days

About Cleanair Vertical Laminar Airflow Bench (CAV 600)

The Cleanair Vertical Laminar Airflow Bench (CAV 600) is specifically designed for industrial applications requiring a contamination-free working environment. This bench combines functionality with sleek aesthetics, featuring a white and blue color scheme. Crafted from durable mild steel, it ensures robust performance and longevity. Powered by a reliable electric supply and operating at a voltage of 220 volts, the unit provides energy-efficient functionality. Its standard size makes it versatile for various workspace configurations. With a focus on precision and clean airflow, this system is ideal for industries demanding high levels of sterility and controlled environments, ensuring top-tier performance in critical tasks.

Product code	CAV 600
Air flow	Vertical- Downflow, Unidirectional
Air Cleanliness	CLASS 100 as per US FED STD 209 E or CLASS 5 as per ISO 14644-1
Inner working size	W 600 x D 600 x H 600 mm (2 x 2 x 2 Feet)
Over all dimension	W 680 x D 800 x H 2000 mm, including removable support stand
Top Cabinet Size	W 680 x D 800 x H 1250 MM
Support stand	W 680 x D 800 x H 750mm, made of 40x40x1.6mm MS square pipes
Particle Retention	0.3 Micron & Above
Noise Level	60 decibel on A scale -/+ 5
Velocity	90 Feet / Minute -/+ 20
Work table	Made of IS304 Grade SS, satin finish polish
Front door	4 mm thick clear polycarbonate - Sliding Type
Side Panels	4 mm thick polycarbonate
U V lamp	1 1/2 Feet, 15 Watts, Make - PHILIPS: 2 Nos
Illumination	2 Feet, 10 Watts, LED TUBES:1 Nos
Pressure (P)	Inclined Manometer 0 - 25 mm range
Power Supply	230V, Single phase, 50 Hz
HEPA Filter	H 14 grade, Mini-pleat HEPA filter in separator less construction in anodized aluminum extruded frame with protective mesh on both side and tubular rubber gasket on downstream side. Initial pressure drop 12 mm, final pressure drop 30mm. Particle retention 0.3 micron, efficiency 99.97% at rated velocity. Size: 610x610x65 mm
PRE Filter	Synthetic, non-woven polyester fibers with protective mesh and deep-comb formed into PU coated GI/SS 304 casing. IPD 6mm, Particle Retention: 10 Micron. Efficiency: 95 %. Size: 500x300x30 mm
Material of construction	Main cabinet made of galvanized iron sheet with PU paint coated finish. (Also available in IS304 grade SS construction / Ply lam)
Blower Assembly	Outer rotor type blower, driven by 220V, singe phase1440 RPM Motor
Standard accessories	5/15A power point, power chord with 5 amps plug top, floor leveling screws, castors & gas inlet
Standards compliance	US FED STD 209 E, ISO 14644-1, IESTRP-CC-002-2
Weight before packing	Approximate 150 KG
Weight after packing	Approximate 300 KG if packed in full wooden crate box
Optional if required	Differential Pressure gauge LCD Display with feather touch switch control displaying following contents ON/OFF, Blower, LED, UV Plug, Settings, Alarm off UV Hour meter

FAQs of Cleanair Vertical Laminar Airflow Bench (CAV 600):

Q: What is the primary usage of the CAV 600?

A: The Cleanair Vertical Laminar Airflow Bench (CAV 600) is designed for industrial applications requiring a sterile and contamination-free workspace.
